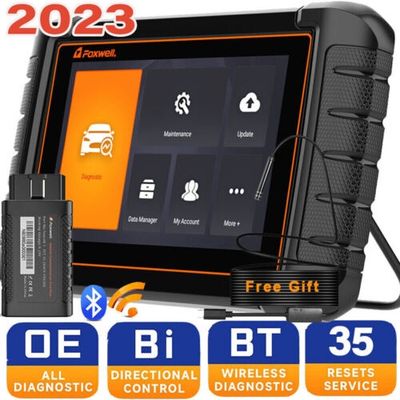

FOXWELL NT809 BT Bidirectional Scanner Tool
€625.00€
Price incl. VAT (23%) €116.87€
In stock: 3 available
Product Details
FOXWELL NT809 BT Bidirectional Scanner Tool
2024 New Version Foxwell NT809 BT Bluethooth Professional Car Diagnostic Scanner OBD2 Code Reader with Bidirectional Test + ALL System Diagnostics + 35 Reset Services + FULL OBD2 Functions + 3 Year Free Update + Multi-Language+Support 20000+ Cars
Upgrade of Foxwell NT809, NT809BT is newly developed diagnostic scanner with Andorid 9.0 operating system. It inherits the same Foxwell advantages in car fault diagnostic tech, such as multi manufacturer coverage, service functions and accurate test data, making it the perfect tool for busy garages or workshops, who need the latest technology at unbeatable value.
Bi-directional Control Function(Actuation Test) Command Particular Operations on the Vehicle
This device with bi-directional technology, not only can diagnosis a problem but can also take measures to begin the repair. The DS700 can activate and actuate all available modules. Whether you want to do fuel injection, wiper activation, or any other component test in-between, you can use the scanner. You can also turn on headlights, roll down a window, etc. It's necessary when you want to see whether an actuator or sensor is working as it should.
2024 New Version Foxwell NT809 BT Bluethooth Professional Car Diagnostic Scanner OBD2 Code Reader with Bidirectional Test + ALL System Diagnostics + 35 Reset Services + FULL OBD2 Functions + 3 Year Free Update + Multi-Language+Support 20000+ Cars with Free Gift(Endoscope )
Upgrade of Foxwell NT809, NT809BT is newly developed diagnostic scanner with Andorid 9.0 operating system. It inherits the same Foxwell advantages in car fault diagnostic tech, such as multi manufacturer coverage, service functions and accurate test data, making it the perfect tool for busy garages or workshops, who need the latest technology at unbeatable value.
Top Reasons to Choose Foxwell NT809 BTScanner
>> Compatible with the models: including cars, SUVs, minivans, light-duty trucks sold worldwide.it is important for automotive repair shops to get as much coverage as possible to effectively and quickly service any vehicle .NT809 provides quick and easy diagnosis on more than 108 American, Asian and European vehicle makes .
>> The most affordable combination of ALL systems diagnostics and 35 (still growing) service functions in one Android based 7” touchscreen tablet tool.
>>Bidirectional Scan Tool are Available ,GOOD NEWS: This car scanner now added Bi-directional control functions, you can update your NT809 to get it for free! Perform active test to send commands to the integrity of systems or vehicle’s modules to test the working status without using the vehicle controls, such as Fuel Pump, Fuel Injector Test, Window/Door Lock/ Horn, etc. To make sure it will run more smoothly on your vehicle, please provide us vehicle’s information BEFORE purchase!
>> A full detection for ALL systems (ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.).
>> 35 (still growing) commonly used hot services covered for complete diagnosis and reset functions in routine maintenance.
>> Supports 10 Modes of OBDII operations in 4 display modes (Analog Gauge, Text, Waveform Graph, Digital Gauge).
>> Compared with old NT809 90CM short OBD2 cable, NT809BT BT wireless connection offers better diagnostic experiences for workshops/DIYers who often need to repair around cars.
>> Live Data Record & Playback: Merge 4 in 1 live data in graph + In Single & Multi-graph Type
>> Extensive coverage of over 108 car brands worldwide, Over 20000 car models coverage.
>> One Touch AutoVIN & AutoScan for smart diagnostics.
>> Smart Scan: Android 9.0 operating system
>> One Click Software Update via Wi-Fi, Wifi Free Update.
>> Diagnostic Report: Allow to generate and save it in PDF + Diagnostic results share via E-mail/ Bluetooth/ Printer(When connect with same Internet)
>>MultipleLanguage Support (13): English, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.
>> TeamViewer: Instant support available from our technical team by TeamViewer remote control.Support Full System Diagnose: Read and Clear Codes of All Electronice Modules, Help you accurately identify car’s problem!
This option allows you to detect whether the system parameters are normal or not.
Include :
ABS System,
Engine System,
SAS System ,
TPMS System ,
IMMO System ,
Battery System ,
Oil Service System ,
SRS System ,
DPF System ，
Air Conditioning System，
Transmission System,
ect...
Read and erase codes for all available systems, turn off MIL light (Indicator light), display live data in text, graph & analog for easy data review.
xwell NT809 BT Support Special Functions: 35+ Resets Service
1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.
3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7.IMMO Key
It is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.
9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.
11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.
13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.
14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.
15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
16.EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.
19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.
20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.
21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift
22.Language Change
This function is used to change the system language of the vehicle central control panel.
23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.
24.KM Reset
a) KM reset is to copy,write, or rewrite the value of kilometers in the chip of KM by using a car diagnostic computer and data cable, so that the KM shows the actual KM.
b)Usually when the KM is not correct due to the damaged vehicle speed sensor or KM failure, it
is necessary to do KM reset after maintenance.
25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).
26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
27.Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.
28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.
etc...
Note:
These special function NOT for all car models, if you are confused, you can send your car brand, model and release year to me, I will check for you.
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.
3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7.IMMO Key
It is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.
9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.
11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.
13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.
14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.
15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
16.EGR Reset
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
17.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.
19.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.
20.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.
21.AT Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift
22.Language Change
This function is used to change the system language of the vehicle central control panel.
23.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.
24.KM Reset
a) KM reset is to copy,write, or rewrite the value of kilometers in the chip of KM by using a car diagnostic computer and data cable, so that the KM shows the actual KM.
b)Usually when the KM is not correct due to the damaged vehicle speed sensor or KM failure, it
is necessary to do KM reset after maintenance.
25.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).
26.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
27.Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.
28.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.
etc...
Note:
These special function NOT for all car models, if you are confused, you can send your car brand, model and release year to me, I will check for you.
Full OBD2 Basic Function
01 - Request Current Powertrain Diagnostic Data
02 - Request Powertrain Freeze Frame Data
03 - Request Emission-Related Diagnostic Trouble Codes
04 - Clear/Reset Emission-Related Diagnostic Information
05 - Request Oxygen Sensor Monitoring Test Results
06 - Request On-Board Monitoring Test Results for Specific Monitored Systems
07 - Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle
08 - Request Control of On-Board System Test or Component
09 - Request Vehicle Information
10 - Request Emission-Related Diagnostic Trouble Codes with Permanent Status
Read ECU Info. & Auto Vin Scan
ldentifies cars quickly and easily with one-key VIN reading
Diagnosis Health Report Share & Print
You can share the health report of your car with others via email, and you can also send it to yourself. find out the problem quickly and easily, assist your car repairing
One Touch Upgrade Via WiFi
Easily download software upgrades, simple operation, one-click connection to your car, solve almost all problems of your car!
Support Over 90 Makes, Over 20000+ car models, Include Newest 2023/2024 Car Models
American Coverage:
For Chrysler,For Dodge,For Jeep,For Ford,For GM,For GMbrazil(For Brazilian Market Only)
Asian Coverage:
For Acura,For Daewoo,For Daihatsu,For Fordau,For Fuso,For Hino,For Holden,For Honda,For Hyundai,For Hyundaicv,For Infiniti,For Isuzu,For Isuzu Truck,For Kia,For Lexus,For Maruti,For Mazda,For Mitsubishi,For Nissan,For Perodua,For Proton,For Scion,For Ssangyong,For Subaru,For Suzuki,For Toyota,For GTR,For Ford AU, For Holden(For Australia Market Only),For Mahindra, For Tata(For India Market Only)
European Coverage:
For Abarth,For Alfa,For Astonmartin,For Audi,For Bentley,For Benz,For Bmw,For Bugatti,For Citroen,For Dacia,For Ferrari,For Fiat,For Fordeu,For Jaguar,For Lamborghini,For Lancia,For Landrover,For Maserati,For Maybach,For Mini,For Opel,For Peugeot,For Porsche,For Renault,For Rolls-Royce,For Saab,For Samsung,For Seat,For Skoda,For Smart,For Sprinter,For Vauxhall,For Volvo,For Vw,For Vw_Cv
Support Multiple Languages
Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian，Hungarian, Slovak, Greek, Chinese, Traditional Chinese
Foxwell NT809 BT Specifications
Screen : 7"diagonal, daylight readable color LCD screen； 1024*600pixel
Operating system: Android 9.0
communication interface: WiFi
Connection: Bluetooth-Compatible
Built-in battery: 4000mAh
Memory:32G
Working Temperature：-10 to 70℃
Storage Temperature：-20 to 80℃
