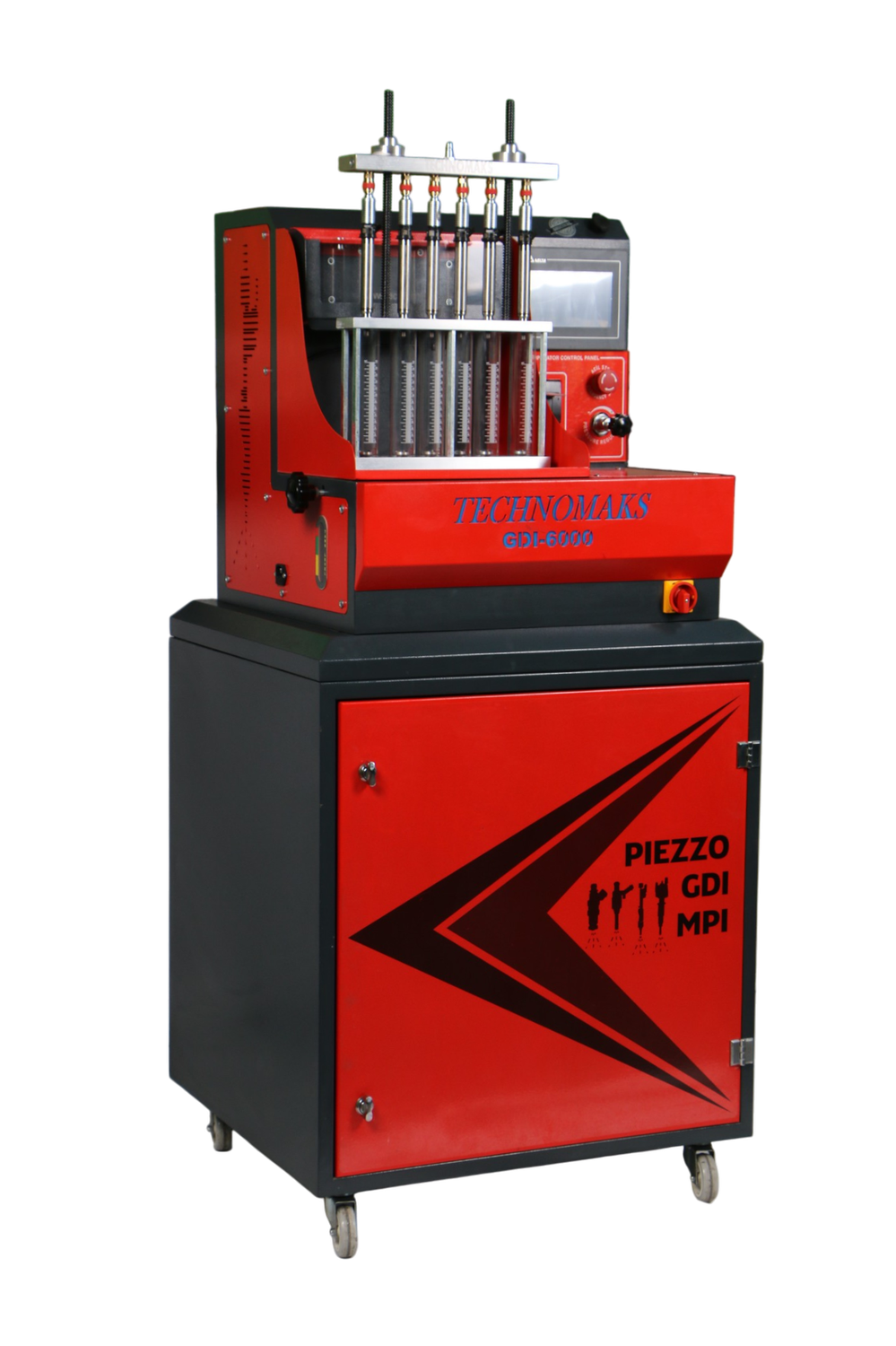

Technomaks GDI-6000 Gasoline Injector Test Tool
€9 000.00€
Price incl. VAT (23%) €1 682.93€
In stock: 3 available
Save this product for later
Technomaks GDI-6000 Gasoline Injector Test Tool
Product Details
Technomaks GDI-6000 Gasoline Injector Test Tool
** Due in November 2025 **
Fuel Injector Cleaning and Testing Machine
Fast, Reliable, High-Tech
Our Fuel Injector Cleaning and Testing Machine is a next-generation system designed to clean and test GDI, MPI, and Piezo injectors, all in one compact unit. It operates with precision at a pressure range of 0–200 bar, replicating real engine conditions for highly accurate diagnostics.
✅ Key Features:
- Fast and intuitive operation
- MS program for race cars
- Advanced electronic bar gauge
- Easy jack connection system for quick and secure injector hookup
- Pressure range: 0–200 bar
- Integrated Ohmmeter for coil resistance testing
- Built-in printer for physical test reports
- Advanced touchscreen interface
- USB port for data backup and export
- Reverse flushing function for internal cleaning
- High-pressure cleaning programs
- Low, medium, and full-throttle test simulations
- Automatic and manual testing modes
- Remote software update capability
- Software developed entirely in-house, ensuring accurate and consistent pre-/post-test values
- Extensive injector database with 8,000 unique serial-numbered injector records preloaded
- When an injector’s serial number is entered, the machine automatically displays the fuel quantity that injector should deliver when brand new (unused)
- These reference values are obtained from completely new, unused injectors, providing a highly reliable benchmark for precise performance comparison during diagnostics
- Warranty: 2 years on all products
It has a specially designed ergonomic structure. (The locker section is also the cargo transport box.)
Aluminum body test rail and bottle holder chamber flexible special test tubes resistant to hot and cold weather conditions 6X150 (mg)
From 1 injector to 6 injectors, with easy fasteners, the injectors are connected in a short time. Thanks to the injector drip chamber, you can make detailed directional spray detection. Each test takes a maximum of 90 seconds
It measures pressures clearly with its 200 bar (Electronic Measurement) system specially designed for GDI-6000. GDI-6000 Maximum reaches 200 bar. Thanks to this pressure, drip tests are observed very clearly. With the ability to provide receipts with the printer, you can present the test results to the services and organizations that request them.
Thanks to DATABASE, the (mg) of 6000+ types of injectors can be seen on the 7.0 inch touch screen.
Thanks to NEW-ENJ+ MOD, you can create and save injectors and injections that are not available on the DATABASE page.
OHM-TEST MODE allows you to measure the values of the injector (OHM test)
AUTO-1 Low speed, (4000 RPM)
AUTO-2 Medium speed, (5000 RPM)
AUTO-3 High speed, (7000 RPM)
DRIP TEST; Thanks to the Leaking Out mode, the injector can perform drip (leakage) tests clearly under pressure.
Thanks to MANUAL MODE, it performs the rpm power and time tests you want with RPM+, PULSE+ and TIMER+ settings
